Hello all --
I am trying to build a tower-mounted two-radio setup as described on the "channel planning" part of the AREDN site. I need to send PoE to the 2GHz and 5GHz radios at the top of my tower. And I need the 2GHz and 5GHz radios to mesh together, which I understand is what DtD is for. After several days of attempts I have not had success getting the two radios to talk to each other, although I know that each one of them is running separately.

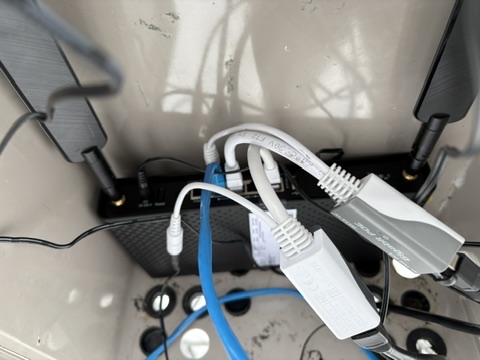

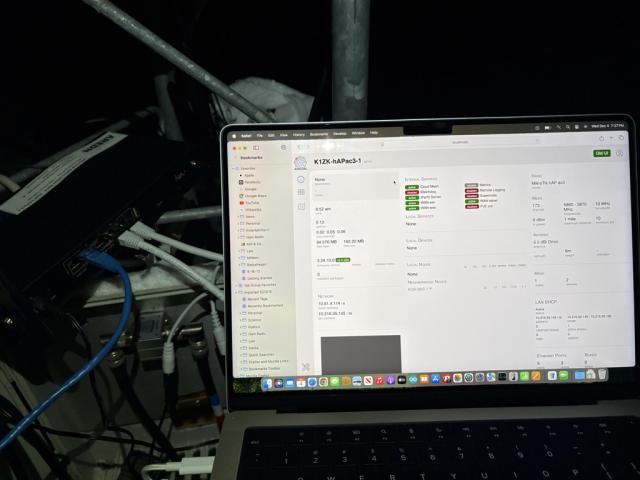

I am now trying to simply prove the DtD concept on my workbench. I have an hAPaclite and an hAPac3, both running AREDN 3.24.10.0. I have plugged "port 5" of each device together. (Maybe this is called a "back-to-back" setup?) See picture:

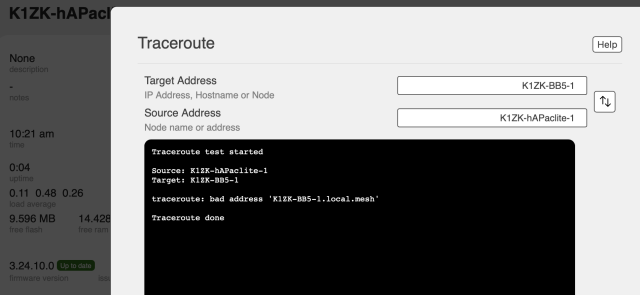

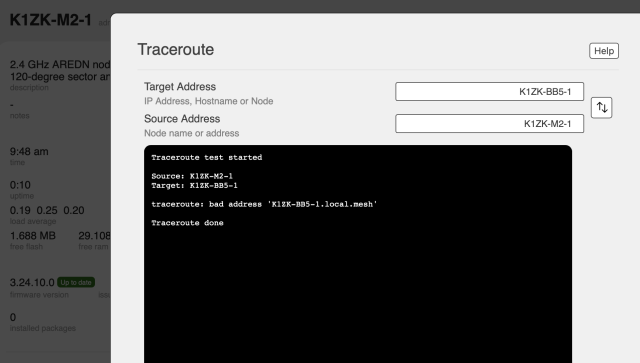

I can access the AREDN dashboard of each device but I cannot seem to confirm whether DtD is working. With the radios on, the devices mesh together. I turned off the radio on the hAPac3 so that the only possible connection would be through the CAT5 cable. But a ping test using the tool on the dashboard shows nothing -- the only result is "Ping Terminated."

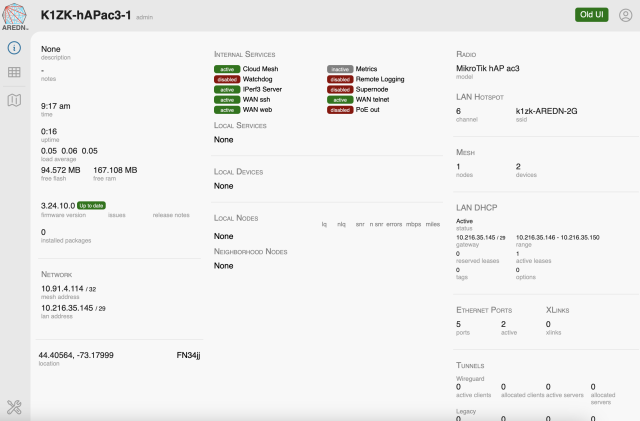

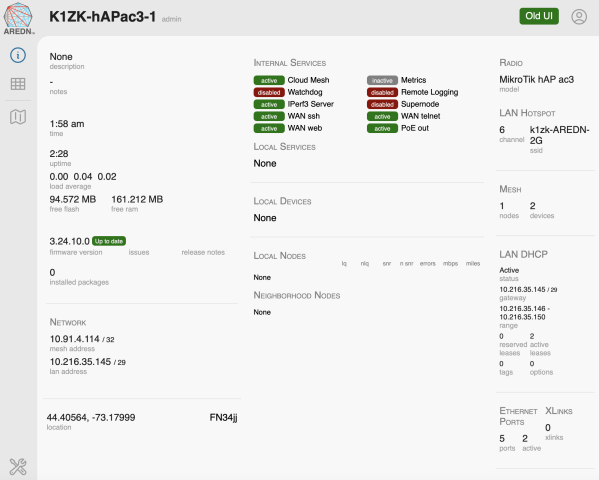

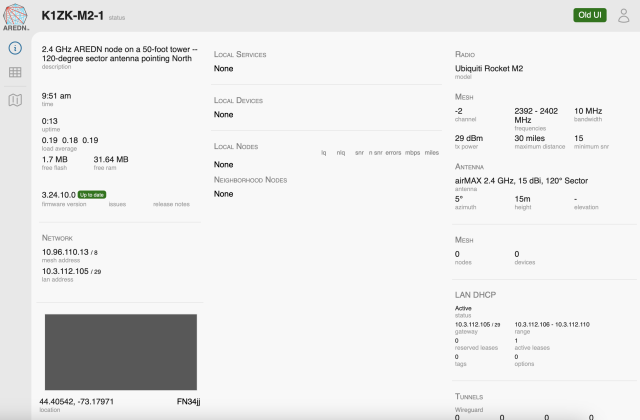

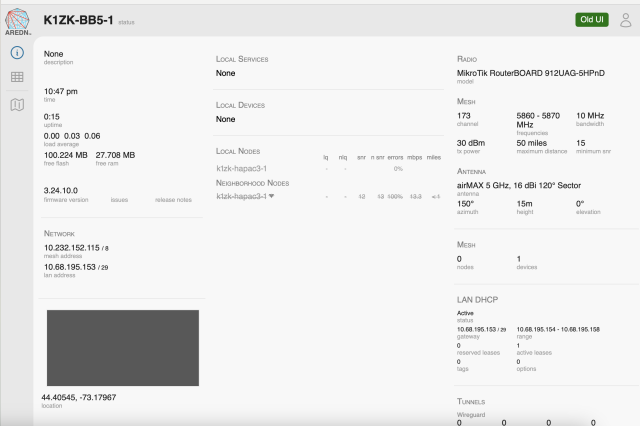

Pictures of the AREDN dashboards for both devices:
I have zero networking experience and there's virtually no AREDN activity where I am, so I need a lot of help -- what should I do next to try to get DtD working?
73 de K1ZK
I am trying to build a tower-mounted two-radio setup as described on the "channel planning" part of the AREDN site. I need to send PoE to the 2GHz and 5GHz radios at the top of my tower. And I need the 2GHz and 5GHz radios to mesh together, which I understand is what DtD is for. After several days of attempts I have not had success getting the two radios to talk to each other, although I know that each one of them is running separately.
I am now trying to simply prove the DtD concept on my workbench. I have an hAPaclite and an hAPac3, both running AREDN 3.24.10.0. I have plugged "port 5" of each device together. (Maybe this is called a "back-to-back" setup?) See picture:
I can access the AREDN dashboard of each device but I cannot seem to confirm whether DtD is working. With the radios on, the devices mesh together. I turned off the radio on the hAPac3 so that the only possible connection would be through the CAT5 cable. But a ping test using the tool on the dashboard shows nothing -- the only result is "Ping Terminated."
Pictures of the AREDN dashboards for both devices:
I have zero networking experience and there's virtually no AREDN activity where I am, so I need a lot of help -- what should I do next to try to get DtD working?
73 de K1ZK

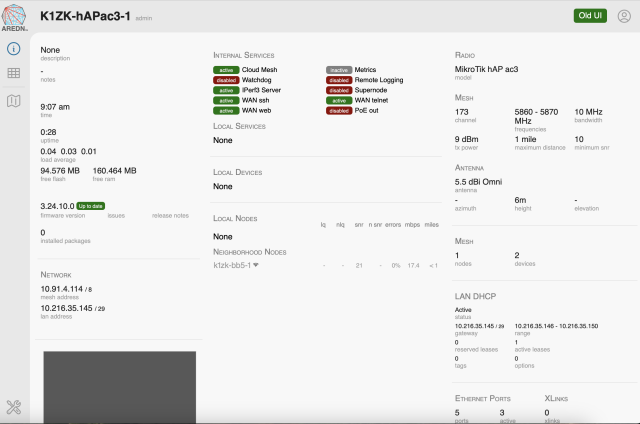

In aclite.png is shown an (AREDN/'mesh') RF connection between the ac-lite and the ac3,
Yet, in the ac3.png image no RF radio appears configured.
Were these 2 images saved close to the same time?

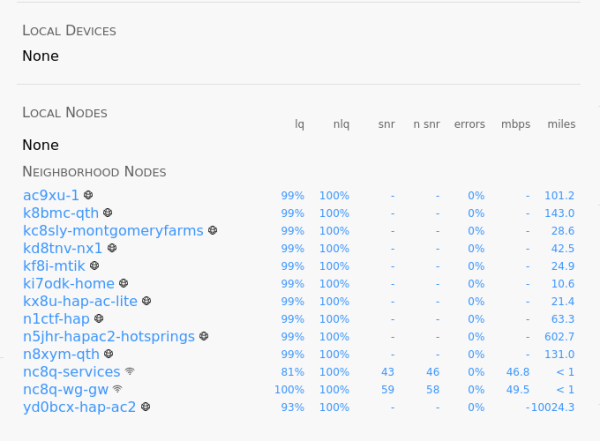

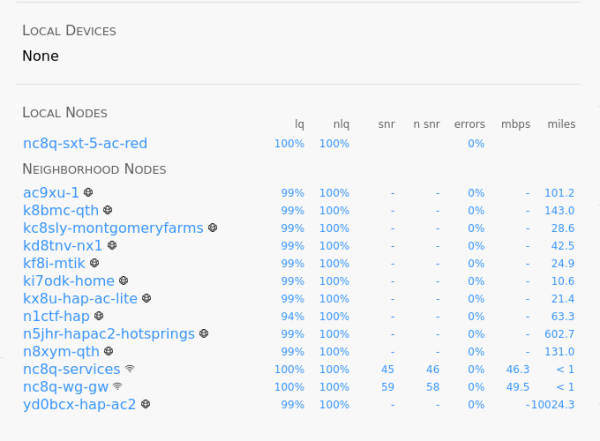

IIRC, in AREDN firmware if there is both a DtD and a RF connection to the same node,
the DtD connection will be used and the RF connection ignored.

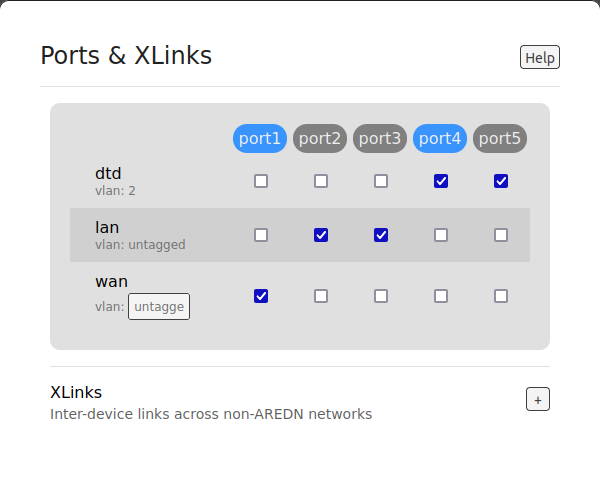

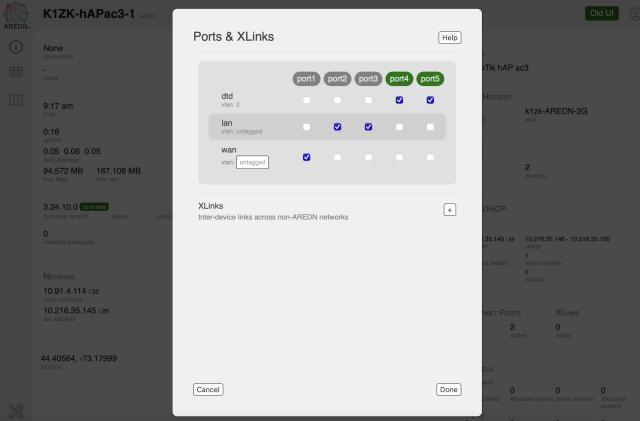

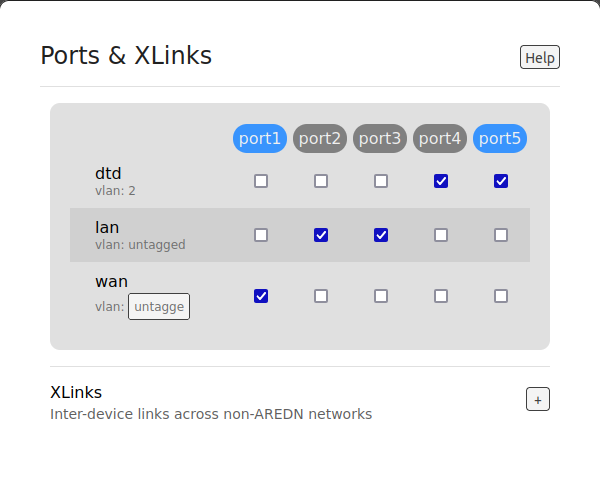

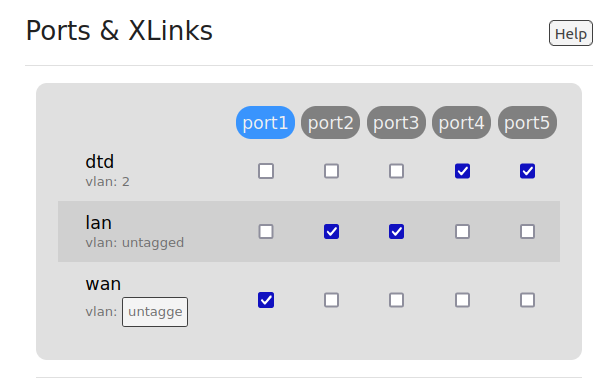

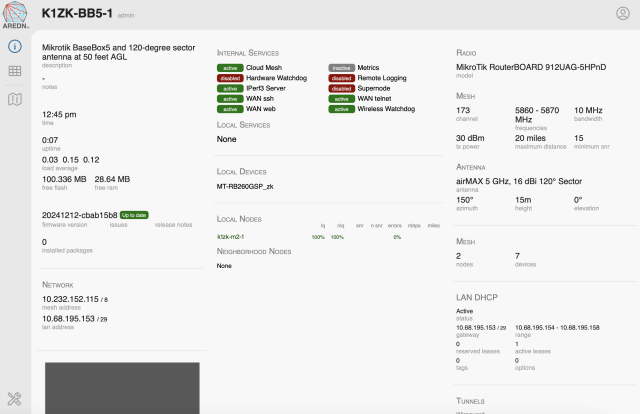

You have sufficient equipment to join your 2 GHz and 5 GHz tower radios if you configure 2 DtD ports on your ac3.

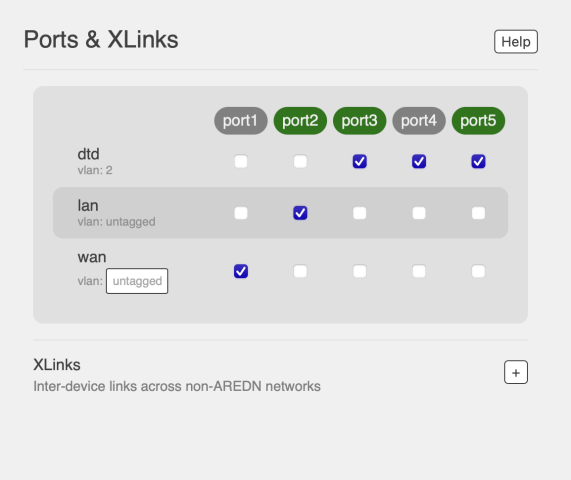

See attached image.
Use the POE injectors that came with your 2 and 5 GHz radios.
Connect the 2 and 5 GHz radios to port 4 and 5.
I hope this helps,
Chuck
