Decals (or keeping your link antenna paint free)
Anyone have a source for weather resistant decals that read:

        Active Antenna
Do not paint, cover, or block


Hopefully the same size and fonts as the standard AREDN decal in the store

73 Martin Flynn
W2RWJ


WU2S
WU2S's picture
Decals and self-adhesive labels
There are many vendors with web sites who offer custom vinyl self-adhesive labels such as the AREDN labels we offer. You can easily specify the size you want an upload the graphic. Small quantities are not overly expensive. Haven't looked into decals, but I expect that they are just as readily available.
wa2ise
wa2ise's picture
There's Brother P-touch
There's Brother P-touch labelmakers and some of their tapes are for indoor and outdoor use.  The labels look to be all plastic and maybe not absorb RF.  You could test this by putting some of the tape with something printed on it in a microwave (along with a cup of coffee as a dummy load) and see if the label survives or not. Assuming success, you could make the label say "Do Not Paint, Microwave Antenna".
k1ky
k1ky's picture
Brother P-Touch Cable Labels
I use the Brother P-Touch "Cable Labels" on all of my outdoor AREDN Gear and Ethernet cables on the towers.  So far so good - 1.5 years + and no sign of degredation.  If you aren't aware, the PTouchDirect.com store.  Here is a link to the tape:

http://www.ptouchdirect.com/ptouch/tz631.html

Last time I bought some, I got another one free for every one that I bought.  Not a bad price considering the prices of the stuff from the office supply places.  I think I bought my labelmaker for around $10. (A $50 value).  Wish I got a commission on this stuff, or at least owned stock in the company!

Probably not RF conductive, but there are places you can place the labels that aren't in the way of the antenna panels.

T.D.




wa2ise
wa2ise's picture
I ran the microwave oven test
I ran the microwave oven test on some black on white tape, nothing happened.  Not even warm.  Which would imply that it won't absorb our RF energy.  A thin extra layer of dielectric on an outdoor antenna that's inside a plastic pipe probably won't impact the antenna's SWR and such to any significant degree.
K5DLQ
K5DLQ's picture
correct
correct
K6AH
K6AH's picture
Painted Antennas

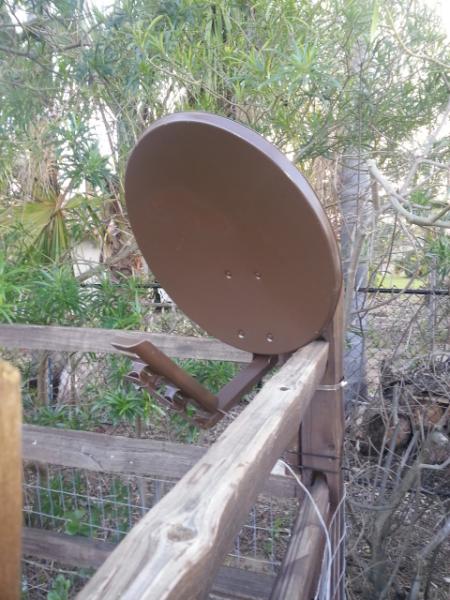

I painted a repurposed Dish Network dish and didn't see any performance difference.  I think the concern goes back to when paint contained lead and perhaps other heavy metals.



Image Attachments:
n1cz
n1cz's picture
dk & df, dielectric constant
dk & df, dielectric constant and dissipation factor.

Unless a conductor is fully embedded in the dielectric then the idea is effective dielectric constant. The further away or the more air/vacuum is around that conductor the closer to the dk is to vacuum ==1.

Low df minimizes loss. Think of df as conductivity so high df or conductivity you do not want. Very low values compared to metals is the cause of excessive loss on a radome.

So testing in a microwave oven as described is a pretty good indicator of conductivity. Hopefully we are not over simplifying (versus over engineering and complicating), but if it doesn't melt or smoke you are probably good. But, I would still put the strip to the side versus in the center. Two on the sides versus one in the center. Obviously no technical data for that, just me.

-Jeff W9NIZ
wa2ise
wa2ise's picture
An aside, using a satellite dish in an antenna restricted area

As aside, if I were in an area with CCRs that ban antennas, I'd use a satellite dish that still has the DirecTV or Dish logo on it, and mount it so it looks like it's looking at a satellite (at least to neighbors that won't notice that it's not aimed where the satellites are) wink   And the neighbors not likely to notice that its "LNB" doesn't look like those on real satellite dish setups.  So the neighbors think you're a satellite TV subscriber, and thus the dish allowed by the FCC.  Yours above looks like it's pointing at the ground, which would be more obvious to people that have a vague idea of where satellites are usually found smiley

K5DLQ
K5DLQ's picture
i understand what you are
i understand what you are saying, but, you gotta point them where the signals are going/coming from....  ;-)  hi hi
KD7MG
KD7MG's picture
See if the mounting hardware
See if the mounting hardware will let you rotate the dish 180°, putting the "LNB" on the top side. With that configuration the dish will appear to point skyward when it's really aimed at the horizon. 8^)
K6AH
K6AH's picture
No CCR's
It's not CC&Rs that cause me to disguise it... it's my wife.  My marriage license has always seemed to trump my ham license ;-(

The antenna is pointing to the San Diego County AREDN backbone network 26 miles away, 5,500' above me in elevation.  If you remember your trigonometry, that's an angle of 2.59°.  To further Darryl's point, with the antenna's offset RF source, that's below the horizon if you're only looking at the alignment of the dish.

Andre
KM4TBQ
KM4TBQ's picture
Conductive Paint?
I just painted the rounded face of a Ubiquiti 5G Sector antenna with grey Krylon spray paint. Only after painting the antenna with two thin coats did I read the ingredients and notice the paint contains titanium dioxide. I can't find information online, and was wondering if anyone here has had any negative effects from painting an antenna with this extremely-prevalent element? The RF does have to penetrate the paint, and my concern is that the paint will attenuate the signal. Any insights? Facts are preferred but experienced opinions are welcomed.

ALSO: I intend to finish the antenna with a small coat of Dupli-Color Acrylic Lacquer ClearCoat to further protect the paint. Any issues there?

Thanks,

Thomas, KM4TBQ
