My GL-usb150 microuter used to work. Now it cannot be accessed. The manual refers to a reset button, but there is no reset button.
How can I fix this?
Bob W8ERD
How can I fix this?
Bob W8ERD
Theme by Danetsoft and Danang Probo Sayekti inspired by Maksimer

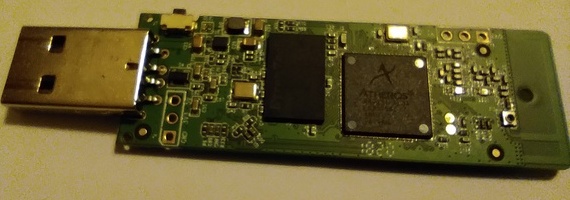

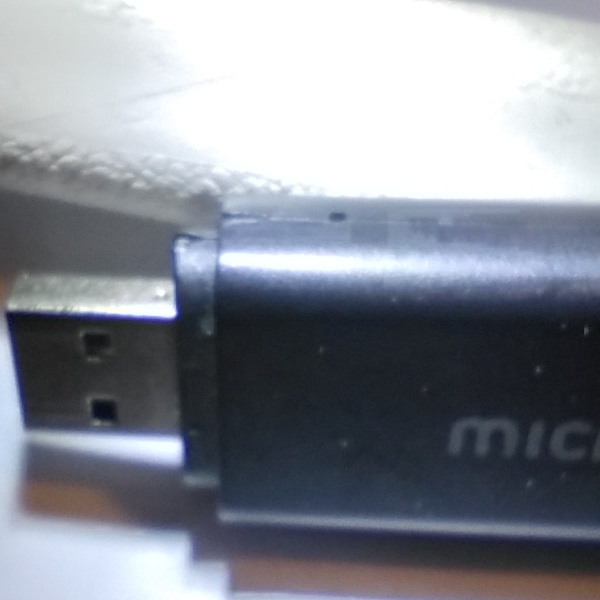

The reset button is internal and behind a pin-hole access.
73, Chuck
Is there a URL that always works?
Bob W8ERD
Hi, Bob:
"But I still cannot log into it."
That is too vague.
"Is there a URL that always works?"
Is your workstation obtaining an IP address from the USB150?
Can you 'ping' the USB150?
Does your web browser get a web page from http://localnode.local.mesh?
Is it rejecting your login attempt?
Chuck
I cannot ping the usb150 because I do not know its address.
The browser does not get a web page.
The GSB rejects any login attempt I have tried.
Bob W8ERD
Go no further using a web browser if your device does not present an IP address to your workstation.
Have you tried to use the USB150 with a different computer?
Does your computer recognize that a USB device was inserted?
https://docs.gl-inet.com/router/en/2/troubleshooting/reset/
If the 3 second reset does not work, try the 10 second reset.
If that works, your can return to the instructions for 1st time installation:
https://docs.arednmesh.org/en/latest/arednGettingStarted/installing_firm...
If that does not work, try the Uboot method.
https://docs.gl-inet.com/router/en/2/troubleshooting/debrick/
73, Chuck
Tried a different computer; same results.
Bob W8ERD
If it doesn't obtain an IP, you may have to set an appropriate one for the UBoot process. Keep in mind AREDN IS an OpenWRT distribution for the purposes of any of the instructions... https://openwrt.org/toh/gl.inet/gl-usb150
If your computer doesn't recognize an additional ethernet adapter, unfortunately, you may have a very light brick in your hands.
If the computer recognizes that there is an Ethernet interface connected after you plug in the USB-150, try setting your computer to something on that subnet (192.168.8.2 for example) for that interface. Then see if you can reach the USB-150 on the 192.168.8.1 address.
If that does not work, if you have a packet analysis program on your computer (WireShark for example), see if that shows any IP traffic on the USB-150 interface. If it does, what is the IP address shown as a source?
Guess I just order another microuter.
Bob
Bob W8ERD
Part 2: If you really just want to replace it, I would be willing to sell you mine. I seldome use it and have other ways to get portable AREDN.
Bob W8ERD
There's been previous threads where the GL-USB150 had odd ip addresses, 192.168.8.1 and no DHCP.
https://www.arednmesh.org/content/bricked-gl-usb-ar150
