TPLINK CPE610 - BOOT LOOP

13 posts / 0 new

Thu, 04/09/2020 - 00:04

VK1MIC

Hi all,

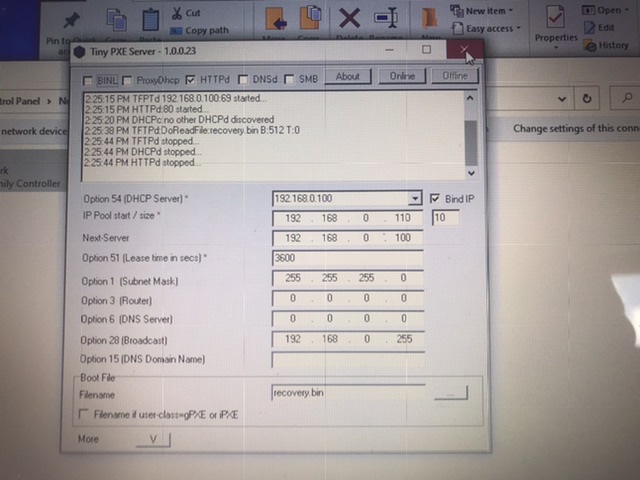

My CPE610 just got delivered this morning, i downloaded the factory file to flash to the node, the web interface of the tp link rejected it, so did it via the PXE server route, now the node looks like it is just in a reboot loop after taking the renamed "recovery.bin' file.

Ideas?

Wade
VK1MIC

Thu, 04/09/2020 - 02:46

VK1MIC

Crap crap I have just seen

Crap crap I have just seen the little sticker on the back of the feed horn its showing UN/2 Im hoping thats not version 2 of the CPE610 - no where else was it written.

Is it likely v 2 of the 610 will be supported?

Thu, 04/09/2020 - 08:27

(Reply to #2) #3

KK4ZUZ

Are you able to recover back

Are you able to recover back to the standard TP-Link software?
If so a copy of the boot/dmesg information would help in creating a version for th TP-Link CPE610 V2
Please post a photo of the version sticker with the serial number blanked out.

Thu, 04/09/2020 - 08:30

(Reply to #3) #4

VK1MIC

Yeah got it back it stock.

Yeah got it back it stock. If you tell me how to get the data you need I am
happy to provide.

Thu, 04/09/2020 - 09:49

(Reply to #4) #5

KK4ZUZ

Start by providing the same

Start by providing the same information that was given in this thread https://github.com/aredn/aredn_ar71xx/issues/219

Enable ssh on the device and then connect to it using ssh.

Fri, 04/10/2020 - 03:04

(Reply to #5) #6

VK1MIC

$ cat /proc/cpuinfo

system type : Atheros AR934x

processor : 0

cpu model : MIPS 74Kc V4.12

BogoMIPS : 279.55

wait instruction : yes

microsecond timers : yes

tlb_entries : 32

extra interrupt vector : yes

hardware watchpoint : yes, count: 4, address/irw mask: [0x0000, 0x0ff8, 0x0ff8, 0x0ff8]

ASEs implemented : mips16 dsp

shadow register sets : 1

core : 0

VCED exceptions : not available

VCEI exceptions : not available

$ dmesg

Linux version 2.6.31 (jenkins@sohoiapbuild) (gcc version 4.3.3 (GCC) ) #1 PREEMPT Fri Dec 13 11:33:39 CST 2019

flash_size passed from bootloader = 0

CPU revision is: 0001974c (MIPS 74Kc)

ath_sys_frequency: cpu srif ddr srif cpu 560 ddr 450 ahb 225

Determined physical RAM map:

memory: 02000000 @ 00000000 (usable)

User-defined physical RAM map:

memory: 04000000 @ 00000000 (usable)

Zone PFN ranges:

Normal 0x00000000 -> 0x00004000

Movable zone start PFN for each node

early_node_map[1] active PFN ranges

0: 0x00000000 -> 0x00004000

On node 0 totalpages: 16384

free_area_init_node: node 0, pgdat 8029f230, node_mem_map 81000000

Normal zone: 128 pages used for memmap

Normal zone: 0 pages reserved

Normal zone: 16256 pages, LIFO batch:3

Built 1 zonelists in Zone order, mobility grouping on. Total pages: 16256

Kernel command line: console=ttyS0,115200 root=31:04 rootfstype=squashfs init=/init mtdparts=ath-nor0:128k(u-boot),64k(pation-table),64k(product-info),1536k(kernel),6144k(rootfs),192k(config),64k(ART) mem=64M

PID hash table entries: 256 (order: 8, 1024 bytes)

Dentry cache hash table entries: 8192 (order: 3, 32768 bytes)

Inode-cache hash table entries: 4096 (order: 2, 16384 bytes)

Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.

Primary data cache 32kB, 4-way, VIPT, cache aliases, linesize 32 bytes

Writing ErrCtl register=00000000

Readback ErrCtl register=00000000

Memory: 61004k/65536k available (2122k kernel code, 4464k reserved, 558k data, 120k init, 0k highmem)

Hierarchical RCU implementation.

NR_IRQS:128

plat_time_init: plat time init done

Calibrating delay loop... 279.55 BogoMIPS (lpj=559104)

Mount-cache hash table entries: 512

NET: Registered protocol family 16

bio: create slab <bio-0> at 0

NET: Registered protocol family 2

IP route cache hash table entries: 1024 (order: 0, 4096 bytes)

Switched to high resolution mode on CPU 0

net_link: create socket ok.

TCP established hash table entries: 2048 (order: 2, 16384 bytes)

TCP bind hash table entries: 2048 (order: 1, 8192 bytes)

TCP: Hash tables configured (established 2048 bind 2048)

TCP reno registered

NET: Registered protocol family 1

ATH GPIOC major 0

squashfs: version 4.0 (2009/01/31) Phillip Lougher

NTFS driver 2.1.29 [Flags: R/O].

msgmni has been set to 119

alg: No test for lzma (lzma-generic)

alg: No test for stdrng (krng)

io scheduler noop registered

io scheduler anticipatory registered

io scheduler deadline registered

io scheduler cfq registered (default)

Serial: 8250/16550 driver, 1 ports, IRQ sharing disabled

serial8250.0: ttyS0 at MMIO 0xb8020000 (irq = 19) is a 16550A

console [ttyS0] enabled

PPP generic driver version 2.4.2

NET: Registered protocol family 24

7 cmdlinepart partitions found on MTD device ath-nor0

Creating 7 MTD partitions on "ath-nor0":

0x000000000000-0x000000020000 : "u-boot"

0x000000020000-0x000000030000 : "pation-table"

0x000000030000-0x000000040000 : "product-info"

0x000000040000-0x0000001c0000 : "kernel"

0x0000001c0000-0x0000007c0000 : "rootfs"

0x0000007c0000-0x0000007f0000 : "config"

0x0000007f0000-0x000000800000 : "ART"

TCP cubic registered

NET: Registered protocol family 10

lo: Disabled Privacy Extensions

IPv6 over IPv4 tunneling driver

sit0: Disabled Privacy Extensions

NET: Registered protocol family 17

802.1Q VLAN Support v1.8 Ben Greear <greearb@candelatech.com>

All bugs added by David S. Miller <davem@redhat.com>

athwdt_init: Registering WDT success

athwdt_timer_init: Starting WDT.

ath_otp_init: Registering OTP success

ath_clksw_init: Registering Clock Switch Interface success

VFS: Mounted root (squashfs filesystem) readonly on device 31:4.

Freeing unused kernel memory: 120k freed

xt_time: kernel timezone is -0000

nf_conntrack version 0.5.0 (1024 buckets, 30720 max)

PPPoL2TP kernel driver, V1.0

PPTP driver version 0.8.3

ATHR_GMAC: Length per segment 1536

ATHR_GMAC: fifo cfg 3 01f00140

mac:0 Registering S27....

ATHR_GMAC: RX TASKLET - Pkts per Intr:100

ATHR_GMAC: Mac address for unit 0:bfff0000

ATHR_GMAC: ff:ff:ff:ff:ff:ff

ATHR_GMAC: Max segments per packet : 1

ATHR_GMAC: Max tx descriptor count : 128

ATHR_GMAC: Max rx descriptor count : 128

ATHR_GMAC: Mac capability flags : 2580

mac:1 Registering S27....

ATHR_GMAC: RX TASKLET - Pkts per Intr:100

ATHR_GMAC: Mac address for unit 1:bfff0006

ATHR_GMAC: ff:ff:ff:ff:ff:ff

ATHR_GMAC: Max segments per packet : 1

ATHR_GMAC: Max tx descriptor count : 128

ATHR_GMAC: Max rx descriptor count : 128

ATHR_GMAC: Mac capability flags : 2D80

device eth0 entered promiscuous mode

device eth1 entered promiscuous mode

athr_gmac_ring_alloc Allocated 2048 at 0x83b89800

athr_gmac_ring_alloc Allocated 2048 at 0x83b89000

WASP ----> S27 PHY MDIO

Setting Drop CRC Errors, Pause Frames and Length Error frames

Setting PHY...

ATHR_GMAC: Enet Unit:0 PHY:4 is UP RGMii 100Mbps full duplex

ATHR_GMAC: done cfg2 0x7115 ifctl 0x10000 miictrl

Setting Drop CRC Errors, Pause Frames and Length Error frames

athr_gmac_ring_alloc Allocated 2048 at 0x83bf2000

athr_gmac_ring_alloc Allocated 2048 at 0x83b4a800

WASP ----> S27 PHY MDIO

ATHRS27: resetting s27

ATHRS27: s27 reset done

Setting Drop CRC Errors, Pause Frames and Length Error frames

Setting PHY...

ADDRCONF(NETDEV_UP): eth1: link is not ready

br0: port 1(eth0) entering forwarding state

Disable VlanManage, data.enable(0), data.vid(0)

Jumbo Frame disabled in Mac:1

Jumbo Frame sz val:5ee

athr_gmac_ring_free Freeing at 0x83bf2000

athr_gmac_ring_free Freeing at 0x83b4a800

athr_gmac_ring_alloc Allocated 2048 at 0x83b4a800

athr_gmac_ring_alloc Allocated 2048 at 0x8303a800

WASP ----> S27 PHY MDIO

Setting Drop CRC Errors, Pause Frames and Length Error frames

Setting PHY...

Jumbo Frame disabled in Mac:0

Jumbo Frame sz val:5ee

athr_gmac_ring_free Freeing at 0x83b89800

athr_gmac_ring_free Freeing at 0x83b89000

athr_gmac_ring_alloc Allocated 2048 at 0x83b89000

athr_gmac_ring_alloc Allocated 2048 at 0x83bef000

WASP ----> S27 PHY MDIO

Setting Drop CRC Errors, Pause Frames and Length Error frames

Setting PHY...

eth0: no IPv6 routers present

ATHR_GMAC: Enet Unit:0 PHY:4 is UP RGMii 100Mbps full duplex

ATHR_GMAC: done cfg2 0x7115 ifctl 0x10000 miictrl

Setting Drop CRC Errors, Pause Frames and Length Error frames

athr_gmac_ring_free Freeing at 0x83b89000

athr_gmac_ring_free Freeing at 0x83bef000

athr_gmac_ring_alloc Allocated 2048 at 0x83bef000

athr_gmac_ring_alloc Allocated 2048 at 0x83b89000

WASP ----> S27 PHY MDIO

Setting Drop CRC Errors, Pause Frames and Length Error frames

Setting PHY...

br0: no IPv6 routers present

ATHR_GMAC: Enet Unit:0 PHY:4 is UP RGMii 100Mbps full duplex

ATHR_GMAC: done cfg2 0x7115 ifctl 0x10000 miictrl

Setting Drop CRC Errors, Pause Frames and Length Error frames

DMA STATUS disabled in Mac:0

adf: module license 'Proprietary' taints kernel.

Disabling lock debugging due to kernel taint

ath_hal: 0.9.17.1 (AR9380, REGOPS_FUNC, WRITE_EEPROM, 11D)

ath_spectral: Version 2.0.0

SPECTRAL module built on Dec 13 2019 11:39:09

ath_dfs: Version 2.0.0

ath_ahb: 9.5.2.18 (Atheros/multi-bss)

Enterprise mode: 0x00000000

Restoring Cal data from Flash

ar9300_convert_eeprom templateVersion = 82

===>>>[ar9300_eeprom_cover_ctl:5143] cover_ctl_flag: 1.

===>>>[ar9300_eeprom_cover_ctl:5157] cover ctl done.

ath_get_caps[6210] rx chainmask mismatch actual 3 sc_chainmak 0

ath_get_caps[6185] tx chainmask mismatch actual 3 sc_chainmak 0

wifi0: Atheros 9340: mem=0xb8100000, irq=2

===>>>[ar9300_eeprom_cover_ctl:5143] cover_ctl_flag: 1.

===>>>[ar9300_eeprom_cover_ctl:5157] cover ctl done.

dfs is NULL dfs_init_radar_filtersieee80211_wifipos_vattach: 3570: Wifipos intialization starting

ieee80211_wifipos_vattach: 3583: Wifipos intialization mem alloc complete

ieee80211_wifipos_vattach:3597 Netlink socket created for wifipos:8257e000

ieee80211_wifipos_vattach: 3613: Wifipos intialization sock alloc complete

ieee80211_wifipos_vattach:3616 Registered WIFIPOS netlink family

ieee80211_wifipos_vattach: 3667: Wifipos intialization time alloc complete

ieee80211_wifipos_vattach: 3686: Wifipos intialization data store 1 alloc complete

ieee80211_wifipos_vattach: 3696: Wifipos intialization data store 2 alloc complete

ieee80211_wifipos_vattach: 3710: Wifipos intialization complete

VAP device ath0 created

ic->ic_set_special_chwidth(ic, 20)

dfs is NULL dfs_init_radar_filtersieee80211_wifipos_automeas_timer() 2659: cur_distance -1 exceed max_distance 27925

ieee80211_wifipos_automeas_calc_timer() 2711: No client, need not measure, return.

device ath0 entered promiscuous mode

br0: port 3(ath0) entering forwarding state

Scan in progress.. Cancelling it

dfs_attach: use DFS enhancements

DFS min filter rssiThresh = 18

DFS max pulse dur = 151 ticks

dfs_attach disable detects

br0: port 3(ath0) entering disabled state

br0: port 3(ath0) entering forwarding state

Function ieee80211_acs_find_best_11na_centerchan best 5G channel is 161

ieee80211_wifipos_automeas_timer() 2659: cur_distance -1 exceed max_distance 27925

ieee80211_wifipos_automeas_calc_timer() 2711: No client, need not measure, return.

ieee80211_wifipos_automeas_timer() 2659: cur_distance -1 exceed max_distance 27925

ieee80211_wifipos_automeas_calc_timer() 2711: No client, need not measure, return.

ieee80211_wifipos_automeas_timer() 2659: cur_distance -1 exceed max_distance 27925

ieee80211_wifipos_automeas_calc_timer() 2711: No client, need not measure, return.

ieee80211_wifipos_automeas_timer() 2659: cur_distance -1 exceed max_distance 27925

ieee80211_wifipos_automeas_calc_timer() 2711: No client, need not measure, return.

Fri, 04/10/2020 - 09:34

KK4ZUZ

Thank you

Thank you
Once more item. What is the output of

cat /dev/mtdblock2 | grep CPE610

Fri, 04/10/2020 - 09:43

(Reply to #7) #8

VK1MIC

cat /dev/mtdblock2 | grep

cat /dev/mtdblock2 | grep CPE610

CPE610(TP-LINK|UN|N300-5|00000000):2.0

Fri, 04/10/2020 - 09:52

(Reply to #8) #9

VK1MIC

so I dont get my hopes up,

so I dont get my hopes up, how easy or hard will it be to get v2 on aredn? I know its just a small thing but If there is even a ball park time frame it would be awesome to know

Fri, 04/10/2020 - 10:17

#10

KK4ZUZ

I will try to make an image

I will try to make an image for you to test within a week

Fri, 04/10/2020 - 10:21

(Reply to #10) #11

VK1MIC

Wow that's some miracle stuff

Wow that's some miracle stuff. Awesome. I really mean it thanks

Mon, 06/08/2020 - 19:24

#12

W2KP

Boot Loop also on V1

So I have what I would assume would be a cpe610 v1 since I have been using it for a while. I upgraded to Arden mesh v 3.20.3 a few months ago. After upgrading I could not access my node. I assumed some thing went wrong and would have to look into it later since I was busy. I picked it back up today and ended going clear back to factory tp-link software via tftp boot. I think tried to put the 3.20.3 on again and I am also have what seems like a reboot loop. I can see the node come up I get a link and then the link goes right back down. I am not sure if the node is in a reboot loop or if the Ethernet is just bouncing. I see the same behavior if it is plugged in to a switch or direct to pc.

Any thoughts on how to debug? i also looked for some nightly builds but did not see any for this model.

Scott

Wed, 06/10/2020 - 09:29

#13

KK4ZUZ

This bug was resolved in the

This bug was resolved in the Nightly builds
The Image can be downloaded here
http://downloads.arednmesh.org/snapshots/trunk/targets/ath79/generic/

Amateur Radio Emergency Data Network

Menu SF

You are here

TPLINK CPE610 - BOOT LOOP

Amateur Radio Emergency Data Network

Search form

Menu SF

You are here

TPLINK CPE610 - BOOT LOOP
